Flexofold Pivot Pins 14MM 2 Blade Props

Flexofold Pivot Pins 14MM 2 Blade Props
New
Flexofold Pivot Pins 14MM 2 Blade Props
0 reviews • Write a review
from
$29.00
  • Stock: In Stock
  • Brand: Flexofold
  • Model: T15N005
  • Weight: 1.00lb
  • MPN: T15N005
  • Location: Anacortes, WA
Flexofold Flexofold

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

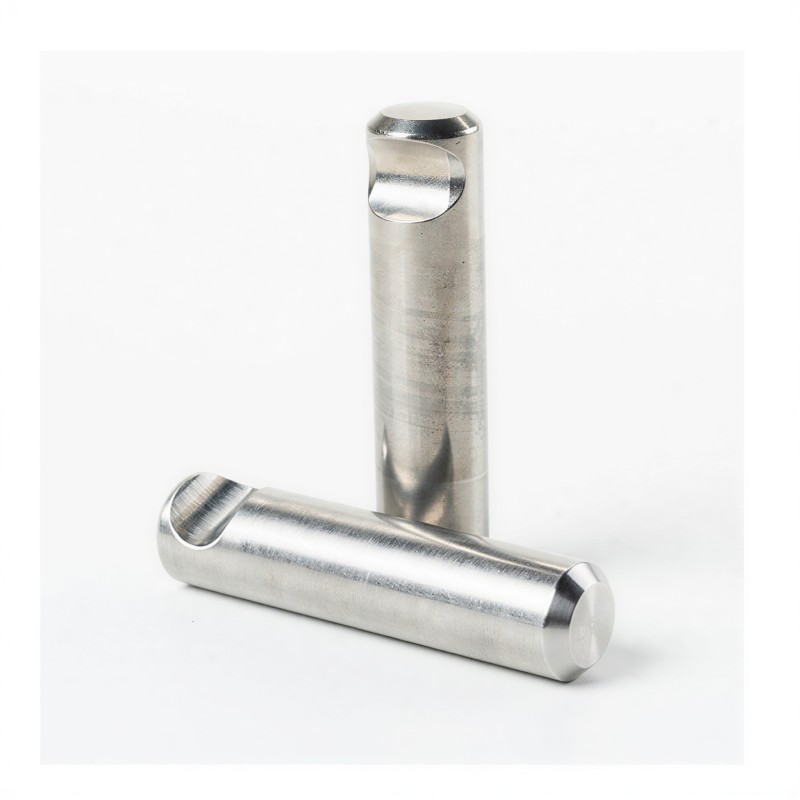

Flexofold 14mm Pivot Pins for Classic 2-blade shaft and saildrive propellers

Flexofold 14 mm pivot pins are the blade hinge pins used on many Flexofold Classic 2-blade folding propellers. They allow the blades to pivot open under thrust and fold when sailing.

Basic Specifications

  • Genuine OEM Flexofold Replacement Part
  • FX Part # T15N005
  • Diameter 14 mm
  • Typical weight 80 g each
  • Sold as quantity of 1pc
  • Stainless Steel construction

Application

  • Flexofold Classic 2-blade shaft props
  • Flexofold Classic 2-blade saildrive props with open gearing

Not Compatible With

  • Flexofold LA (closed-gear) 2-blade props
  • Most 3-blade Flexofold props
  • These generally use 16 mm pivot pins instead

Service / Replacement Notes

  • Pins slide through the blade root and hub.
  • A tapered locking screw (M8) secures each pin in place.
  • When reinstalling, Flexofold specifies tightening the pivot pin locking screws to ≈12 Nm (8.4 ft-lb) and checking blade folding action afterward.
