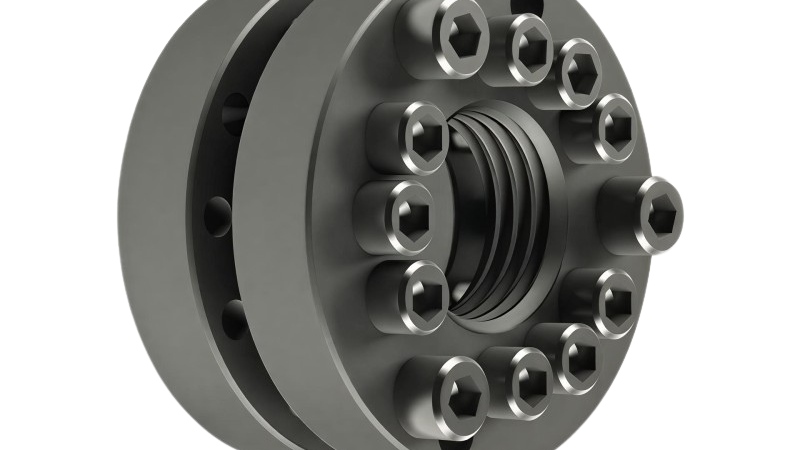

The VEEM Ltd Prop Puller is a precision mechanical tool designed specifically for inboard propeller removal and installation on tapered shafts.

Core function (what it actually does)

At a technical level, it replaces traditional pullers (chains, jaws, or hammering) with a controlled interference-fit system:

  • Applies even axial force directly down the shaft taper
  • Seats the propeller properly onto the taper during install
  • Breaks the taper fit cleanly during removal
  • Eliminates shock loads to drivetrain components
  • The goal is simple: remove/install props without damaging the shaft, keyway, or blades.

How the VEEM puller works (mechanically)

This is where it stands apart from standard pullers:

  • Uses inner + outer tapered rings
  • Tightening bolts converts torque → radial clamping force
  • That creates high friction grip on the shaft hub
  • Generates massive axial force (up to ~40 tons) to move the prop

Key implication:

You’re not pulling from the blades — you’re pushing/pulling through the hub centerline, which is the correct load path.

Key advantages (why it’s considered a “pro-grade” tool)

  • No blade contact No chains, hooks, or jaw arms Eliminates risk of bending or nicking blades
  • Even load distribution Prevents: Keyway deformation Shaft galling Hub distortion
  • High-force capability Can break extremely tight taper fits Suitable for: Large inboard props NiBral / CNC-machined wheels High horsepower applications
  • Also acts as a prop pusher (install tool) Forces prop fully onto taper Reduces: Prop slip on shaft Vibration issues Premature key damage
  • Compact + shaft-specific Sized by shaft diameter (SAE standard) Typical range: 1.5" → 6" shafts
