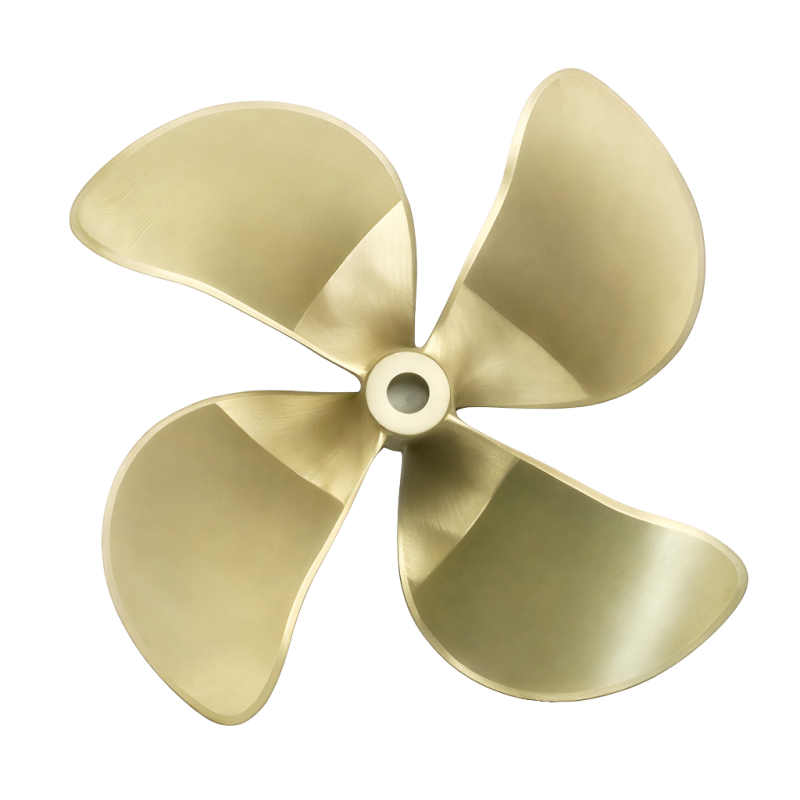

Hung Shen NVP4 Series Propeller 24RH26

24" Hung Shen NVP4 Series NiBral Propellers (RH Rotation)

Reconditioned and Balanced Propeller - Ready to install ~ Quantity available: 1

The NVP 4 Blade series is a high performance propeller using new-foil sections to increase performance and decrease sensitivity to the angle of attack created by an inclined shaft position. This propeller is able to control cavitation extension on the surface of the blade in turn avoiding breakdown in thrust. The result is a propeller that is able to lower vibration and noise created by cavitation. The NVP4 series is excellent at gaining acceleration and maneuverability on vessels that require a high level of performance to get up on a plane. The outstanding gripping ability of the NVP4 propeller allows the boat to hold its planning speed better while in severe maneuvers and during sharp turns.

The Hung Shen NVP4 is a 4-blade marine propeller model from Hung Shen Propellers, a Taiwanese propeller manufacturer known for quality inboard prop designs. It’s part of the NVP series which is a versatile performance prop often available in multiple alloys and designed for various vessel speeds and load conditions

Key dimensions

• Weight 50 Lbs.
• Hub Dia FWD: 3-1/2"
• Hub Dia AFT: 3-1/8"
• Hub Length: 6"
• Bore 2" SAE
• EAR: 0.80
• Tolerance: CNC Machined ISO Class S
• Material: NiBral
• Design speeds to 36 knots
