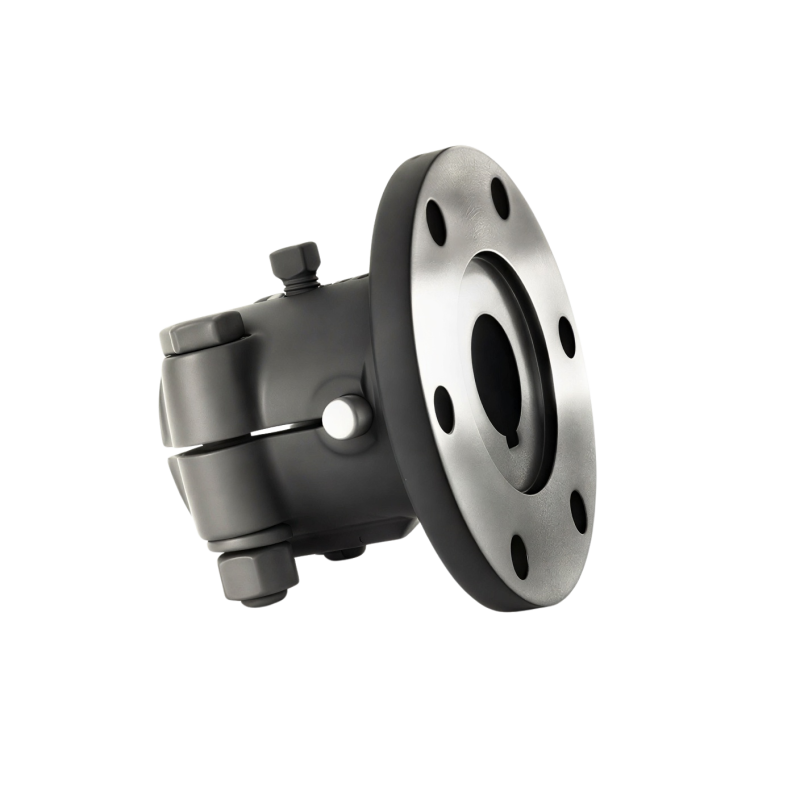

Walter Split Shaft Coupling 8"AB

8.07" Walter Split Propeller Shaft Coupling for ZF Marine Transmissions.

The 8.07" Walter AB Split Propeller Shaft Coupling for ZF marine transmissions is a precision-machined, heavy-duty coupling engineered for secure shaft connection and efficient power transfer. Its split-clamp design allows installation and removal without pulling the propeller shaft, reducing downtime and simplifying service.

Designed for accurate shaft alignment, this coupling minimizes vibration, reduces drivetrain wear, and ensures smooth operation. Built for demanding marine environments, the Walter AB coupling delivers reliable, long-term performance in ZF-equipped inboard systems.

Constructed from high-strength ductile iron and machined to strict marine tolerances, the 8"AB ensures reliable power transfer, proper shaft alignment, and long service life in demanding inboard applications.

Coupling dimensions

• Flange Diameter: 8.07"
• Shaft Range: 2" Thru 3"
• Pilot Diameter: 5.512 x 9/32" Female
• Bolt Circle: 6.693"
• Bolt Diameter: 18mm
• Coupling Length: 5-1/2"
• Bolts: 10 (New flange bolts included)
